REVIEW : Nikon's D500 - My New Favourite Crop Sensor DSLR

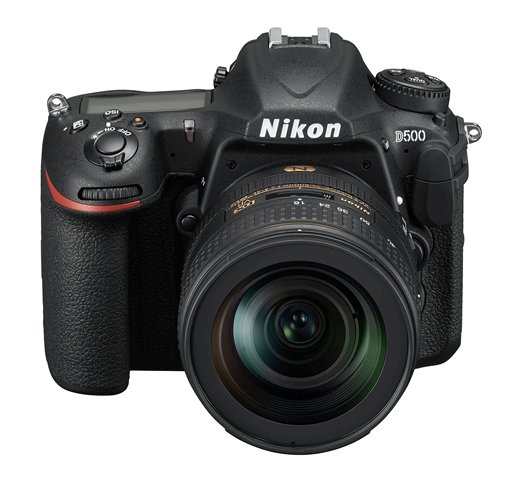

 Nikon D500 w 16-80

Nikon D500 w 16-80

The good people at Nikon have sent me a D500 to review.  While it has been in market since the spring, they are very popular and demo units have been scarce.  I received it in a kit form that included the 16-80/2.8-4 zoom lens.  I also received an SB-5000 speedlight and wireless radio kit as I think that the interaction with a speedlight will be important to serious amateurs and pros.

First Look

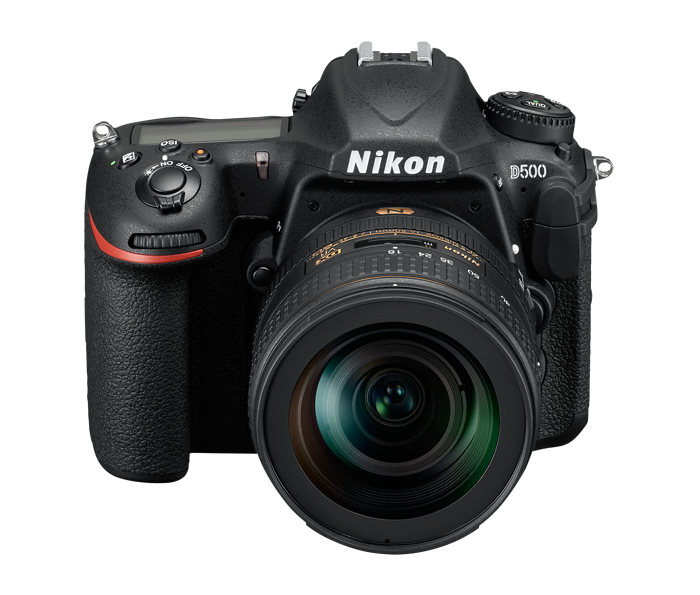

At first glance, the D500 looks and feels like a worthy successor to the superb and rather long in the tooth D300S.  Nikon aficionados have been clamoring for a replacement for many years.  Why call it the D500 instead of the logical D400?  No idea.  I heard a rumour about some numbers being perceived as unlucky but I can offer no input either way.

The body fits my hand well, and is built on the same style chassis as the D810 with a button block in place of the mode dial found on less expensive Nikons.  This is a DX (crop sensor) body, but one designed for the demands of the aggressive shooter.  It delivers 20.9 megapixels from the DX sensorIt brings high burst frame rates (up to 10fps), heavy duty construction and all the Nikon bells and whistles expected from this grade of camera and includes support for the new Nikon radio flash system.  ISO range is 100-51200 with a Hi top end of 1,640,000.

The lens supplied is kind of akin to the 24-120/4 that I shot with the D5.  I will come to a more detailed assessment but for those who are not inclined to read the entire review, I'd suggest considering a body and lens as separate items rather than the bundle.  The lens does not live up to some of its peers, or the body it is mounted on, in my opinion.

The D500 is also one of the first cameras to incorporate Nikon's new wireless image transfer and remote control system.  Even with the latest firmware on the camera and the latest version of the iOS app, Snapbridge is a trainwreck, nigh unusable.  Fortunately, the number of people investing in a D500 are less likely to be wanting to upload their latest bad image of their lunch to Instannoy than the users of a smartphone.  I will look into Snapbridge in more detail later on.

The unit I received has two card slots, an XQD (YAY!) and an SD (BOO!).  I fully understand the decision and understand the desire to bridge customers into the future, but I really hate having two different card slots in any camera.  Just make a dual XQD version and get on with it.  With no disrespect intended, if you can afford a D500, you can afford a couple of lightning fast high capacity XQD cards.  I've used XQD on the Sony FS7 pro video camera, and on the D4s and the D5 and recommend it 100% over the dated and limited SD card methodology.

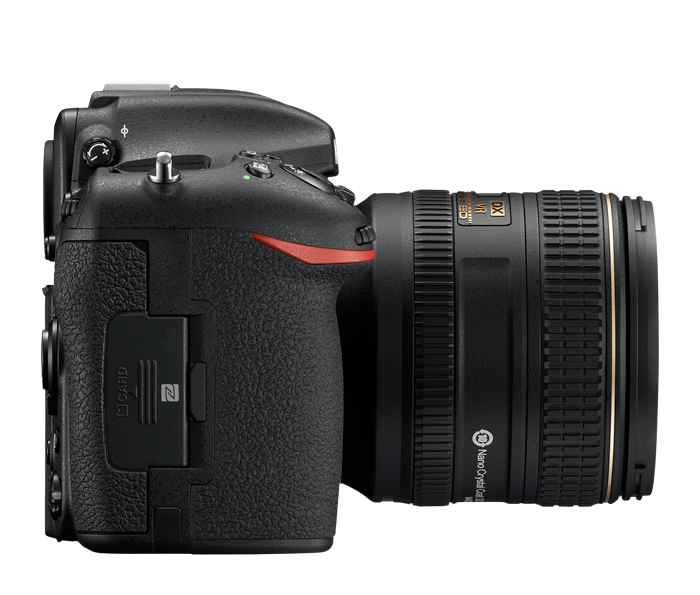

 Access the card slots through the door on the camera's right side

Access the card slots through the door on the camera's right side

The menu system is classic Nikon, great once you know it cold, but with a longer than necessary learning curve and odd placement of seemingly related items in very different sections.  Nikon would benefit from hiring some serious UI designers.  Don't get me wrong, it's usable, and far superior to many other menu systems, nothing like the exercise in insanity that is a Sony menu structure, but it could be better.

The battery is a standard Nikon EN-EL15.  It arrived dead as do most demos, and took about two hours to bring to full load.  It gets a bit warm in the charger but no concerns there.  Like other Nikon DSLRs, the battery installs via a hatch in the base plate.  It is off to the side, so will not interfere with any well designed tripod mount plate or L plate.  There is an accessory battery grip available as well, the MB-D17, and if I were buying a D500 I would definitely add it.  Not because there is anything wrong with the layout of the D500, I just prefer battery grips on my full size cameras.  If you don't, no worries.

The buttons and dials fall nicely to hand.  There is plenty of graspable space, and I have not yet encountered any situation where my standard grip inadvertently hits anything.  As you'll see from the images, the D500 is not cluttered with a zillion extra, programmable buttons.  Some love these devices, I find them to be a major pain in the butt because they get hit by accident and weird stuff happens.  A simple design means I can control the camera without taking it away from my eye.  I was comfortable shooting without looking at the controls in less than an hour.

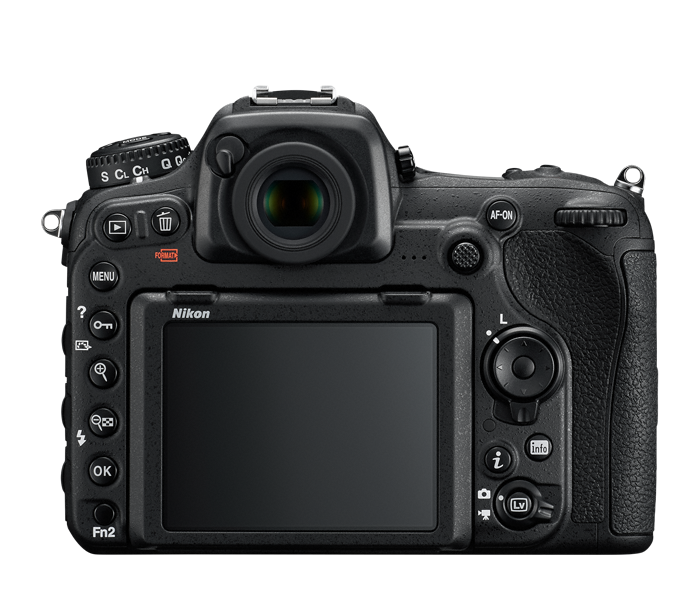

 A nice clean layout, not cluttered with extra tiny buttons.  Note the eyepiece shutter and the flip out LCD

A nice clean layout, not cluttered with extra tiny buttons.  Note the eyepiece shutter and the flip out LCD

Many of the buttons are programmable of course.  After bringing the firmware up to date, I went into the menus to make my standard default settings.  The one I missed, just as I did on the D5, was that the Bracket button defaults to bracketing white balance.  I, like most photographers, think exposure bracketing when the bracketing word is tossed around.  White balance bracketing is a stupid default.  I've heard from enough new users of the D500 already about how their camera was broken because the bracketing button doesn't work.  There's no simple and obvious indication of the bracketing mode without going into the custom controls and that's just lousy.  Actually, I find most of the information on the top deck LCD hard to read without reading glasses.  This may be a case of trying to put too much information in too small a space.  But, if they made things larger and had fewer items, that would likely annoy a different customer segment.  So they cannot win, and since they cannot win, they should do it my way.  Kidding!  Sort of…

 Top deck is more similar to a D810 than a dial based Nikon

Top deck is more similar to a D810 than a dial based Nikon

I shot my first "roll" in RAW with a Neutral Picture Style.  Smart folks know that when you shoot in RAW the Picture Style only has impact on the JPEG preview.  New users and sellers are going to want to choose a different option, because the D500 neutral is the best representation of unaltered RAW that I have ever seen, meaning it is truly flat and wins the ugly beast award.  Remember, that's not the real image, and when I imported the files into Lightroom, they looked crappy at the outset because nothing had been done to them at all, as it should be.  In under a minute of standard workflow, they looked awesome.

Awesome comes a lot from incredible dynamic range.  I chose a bright and sunny fall day for my first shoot and did it in a wooded area with lots of harsh shadows, ugly lighting and boring skies.  The dynamic range of the D500 sensor is superb and you can pull a lot of detail out of shadows and highlights with basic processing workflow without turning the image into halo and noise city.  Shooting using an ETTR methodology for a second set gave me incredible capacity to manage the dynamic range and really get a terrific zone system representation without having to go to Photoshop and masking strategies at all.

The D500, like the D5, has incredible high ISO capability, and like the D5 some of those numbers are really mcmarketing foo-foo dust.  That said, the D500 has the lowest noise floor of any crop sensor camera I have tried.  Rumour has it that the sensor comes from Sony, which would be awesome because Sony does great sensors, but the CPUs and the code comes from Nikon and they do a better job in this regard.  I've put together the standard ISO gallery that you will find further on.  I could comfortably shoot the D500 at ISO 12800 when I am doing my job without concerns and push it harder in bad situations with minor tweaking.

Camera Details

As noted earlier this DX sensor delivers 20.9 megapixels when using all the sensor.  There is a further 1.3x in camera crop, and when you shoot in 4K video, less of the sensor is used for a 1.5x crop.  This makes the maximum native print size at 300 pixels per inch about 12.3 by 18.5 inches, a very respectable native size for a crop sensor camera.

Shutter speeds range from 1/8000 down to 30s plus bulb.  There is also an electronic front curtain shutter for shooting in mirror up mode.

Viewfinder magnification is 1x, as it should be in a camera of this market placement.  The diopter delivers a range from -2 to +1 before you need corrective lenses or a corrective eyepiece.  Unlike the D5 this is not a locking diopter.  It's a small thing, but I wish that it was.  There is, as there should be, a viewfinder blind available on the rear of the pentaprism so the meter doesn't get fooled by light entering through the eyepiece when the camera is on a tripod and nothing is blocking the eyepiece.  This is a big deal for landscape and time lapse photographers and more than one has ended up with odd images because the meter gets thrown off when the eyepiece is not blocked.  It's also easier than keeping a piece of gaffer tape stuck to the body for when you will need it.

When you need to get your gun on, continuous high fires at 10 frames per second.  Continuous low defaults to 4 frames per second, but is user configurable.  Quiet continuous is limited to 3fps and in my opinion is neither all that quiet nor all that continuous.

The built in through the lens exposure meter has a very wide range from -3 EV to 20 EV and uses 180,000 distinct metering pixels.  Multiple metering patterns are available with the widest response range in the matrixed metering setting.

Exposure modes are the expected PASM, with exposure compensation of +-5 stops available in all modes in steps of 1/3, 1/2 or 1 stop.  Note that compensation works in manual mode as well.  Not all cameras take the same approach so watch your display when shooting in manual.

The camera shoots in 14 bit RAW, with your choice of no compression, loss-less compression or lossy compression.  Seriously, if you can afford a D500, you can afford a larger memory card.  There is no place in today's world for lossy RAW.  If space and the desire not to post process is your requirement the camera offers multiple levels of JPEG compression along with numerous predefined picture styles that apply certain processing settings to the JPEGs.  As I don't shoot in JPEG, I will not mislead anyone by saying I tested any of the JPEG stuff.  The RAWs are in Nikon's proprietary NEF format and are terrific but definitely need some post processing, just like any decent RAW.

Bracketing is available across two to five stops in 2 EV and 3EV increments and from two to nine stops in 1/3 EV, 1/2 EV, 2/3 EV and 1EV increments.  Be cautious to read the manual because there are custom brackets indicated as +2 and +3 that behave in a special fashion.  If you want standard bracketing make sure no plus sign is evident.  Bracketing may be combined with exposure compensation to adjust your zero point.

Focus is controlled by Nikon's AutoCam 20K focus system.  There are a total of 153 AF points, 99 of which are cross-type and 15 of which will work when the maximum aperture is only f/8.  There are the master modes of AF-S (single shot) and AF-C (continuous focus)   AF-S works in single point, group and auto area.  AF-C works in dynamic 25, 72 and 153 point settings.  3D Tracking is also available.  Autofocus has incredible range from -4EV to 20EV.  It really does see in the dark.

Flash sync speed is 1/250 and both rear curtain sync and high speed sync are supported with select Nikon speedlights.  As found in other higher end Nikons, there is no popup flash.  The camera supports the new AWL (Advanced Wireless Lighting) protocols that have expanded on the previous CLS Creative Lighting System.  Flash exposure compensation is settable in camera as well as on Nikon speedlights.  By default the flash exposure compensation is ties to the ambient exposure compensation.  I can understand why one might want this, but decoupling the two is one of my first settings changes that I make after switching to shooting in RAW only. Flash bracketing is also available with the same capacity as ambient light bracketing.

The D500 shoots video at up to 4K UHD at up to 30fps.  It can record a maximum length of 29:59 but you are likely to run out of card space before you get there unless you buy a humungous XQD card.  The camera can record 4K UHD to either card so something is happening internally with bandwidth compression as SD cards cannot handle the full bandwidth demands of native 4K.  Compression selects are either H.264 or MPEG-4.  There is no options for LOG format or for uncompressed video.  The HDMI port will stream clean 4K off the sensor to an external recorder, but remember that the sensor has a crop factor of 1.5x applied when shooting in 4K.  Good enough for B roll to be sure but not optimal.  The camera also shoots in FullHD at up to 60fps and in HD at 60fps.  There is a built in microphone that delivers audio in about the quality that you would expect from a built-in microphone, as well as a headphone jack for monitoring audio.  There is also a stereo 3.5mm microphone input for use with an external microphone.  Without trying to offend, the internal mics are awful (just like all internal mics from all vendors), so go with an external if you want to record vaguely decent audio with your video and do both in camera.

The LCD is a 3.2" diagonal design that can be flipped up or partially down.  There is no flipout mode (sorry selfie egotists) and the display has 2.4M dots providing a nice clear image with excellent rendition when zoomed in.  The LCD is touch sensitive in an intelligently limited manner, good for playback but not available for menu selections.

The D500 has HDMI out via an HDMI mini connector, and incorporates the 10pin locking connector for accessories like the WR-R10 wireless flash controller amongst others.  The USB connection is USB 3, as it should be at this point in time eschewing the slow and clanking USB 2 completely.  The camera has built in WiFi and built-in Bluetooth, but both are pretty much bound to Snapbridge.

The EN-EL15 battery is rated for 1240 exposures by CIPA standards and the camera also includes the MH-25A charger.  Camera body weight is 760 grams or about 1.6 pounds

The Shooting Experience

Snapbridge - Not Ready for PrimeTime

After updating the firmware, one of my usual first steps with demos, I wanted to try this all so exciting Snapbridge connectivity.  I've probably paired over one hundred devices using Bluetooth in my life.  Nikon has determined that people need a special piece of software to do Bluetooth pairing and it is the dumbest and most ineffective thing that I have ever seen.  Once I finally got the camera and my not so aging iPhone 6+ to connect, I was able to do basic remote control of the camera, which I should have been able to do much faster than the 30 minutes it took just to make the pairing work.  Bluetooth, as we know is limited range and has limited bandwidth, so as soon as I wanted to see an image that was shot or goodness forbid transfer an image to my phone, I was strongly "encouraged" to enable a WiFi connection.  You have to have the Bluetooth connection set up to make a WiFi connection work, and the awesome (NOT!) software drops the WiFi connection with every change that you make.  After over an hour of fiddling, when I was finally able to get both Bluetooth and WiFi connected, I was never able to get a single image to move to my phone.  My experiences echo those of everyone I know who has actually tried Snapbridge.  Fortunately, I don't need Snapbridge, as I have a drawer full of long range capable, fully functional wireless remotes, as well as an Alpine Labs Pulse that does speak Bluetooth and speaks it correctly the first time and comes with an app that is actually usable.

I put the camera down for a couple of hours to let my blood pressure settle and starting using the D500 the way it was designed to be used.  As mentioned in the first look, it fits the hands perfectly with an excellent control layout.  I had activated back button focus and disabled focus on the shutter button as I always do and found the camera very fast to lock on and it had no delay in shutter release.  Image quality was excellent in some early tests on flying birds and the continuous autofocus was very good.  The DX crop factor is 1.5x so the 75-300 zoom sent along (the new P series - more on that later) was effectively a lightweight 450mm.  Even before getting out to shoot some sports, I can tell you that the D500 is going to be killer for sports and wildlife shooters who need more reach from their glass.

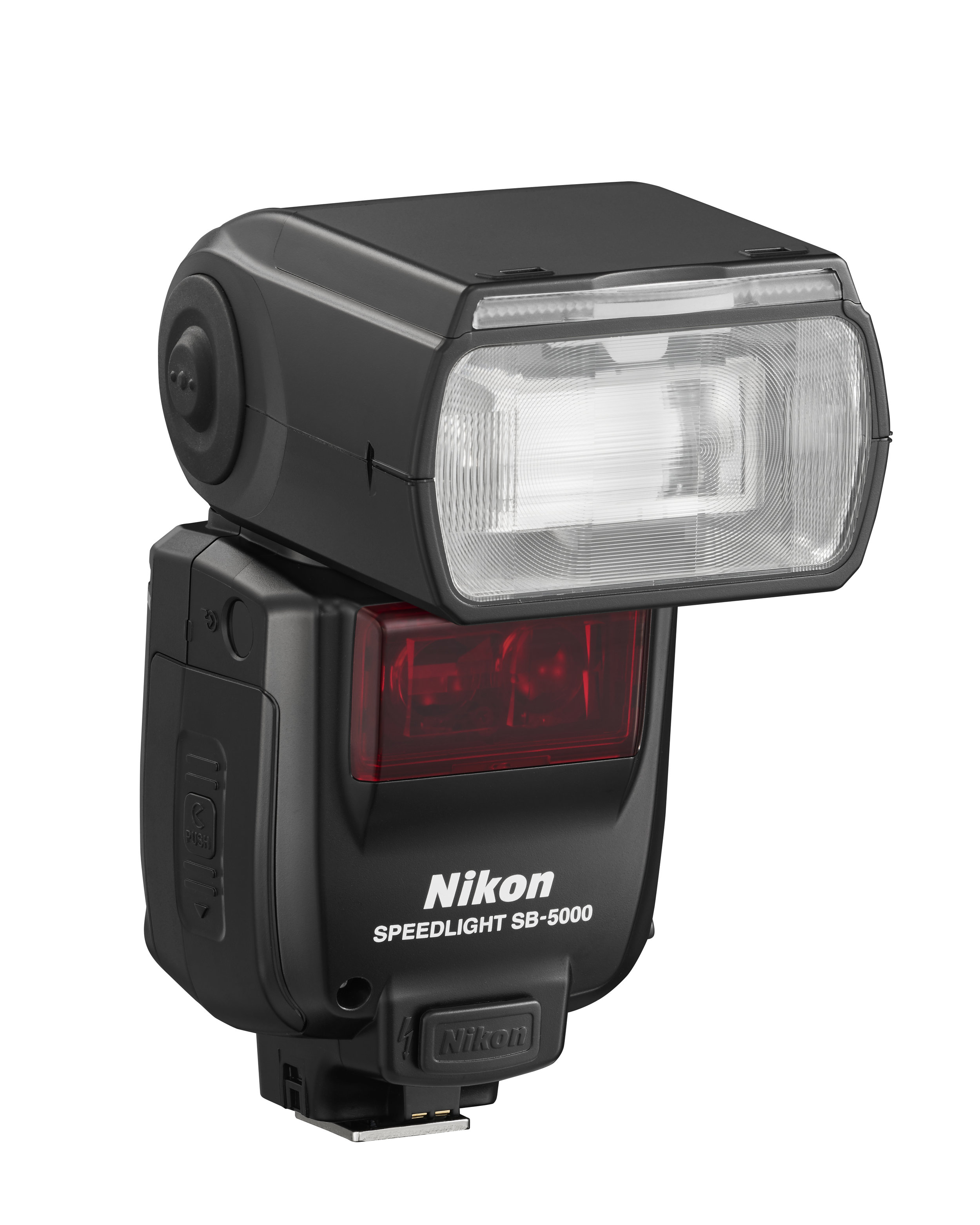

 If you have the money for Nikon brand Speedlight, you cannot beat the SB-5000

If you have the money for Nikon brand Speedlight, you cannot beat the SB-5000

I really liked the SB-5000 when I shot it with the D5 so I connected up the remote wireless controller and took the camera and flash for a walk in the woods on a day that I mentioned was delivering bright sun and nasty shadows.  The combination works absolutely brilliantly, once I relearned how to use them together.  (Aww the horrible pain of shooting so many different products :)   )  Nikon's AWL is the natural evolution of CLS and it just works brilliantly.  In my review of the SB-5000 you can learn more about the speedlight so I won't deep dive into it here.  Suffice to say, that as a photographer who always has a flash in the bag, I would be sure to add an SB-5000 and radio kit to a purchase of a D500.  Fill flash was so simple, being able to control everything from the camera is a treat and the radio connectivity eliminates the one serious challenge of CLS, being line of sight and limited range.

I was surprised to see the battery draining quickly while I was out.  It was down to 3/4 power in no time at all, despite having been charged before I went out.  There was no way I would hit 500 shots let alone the over 1200 according to CIPA.  What could it be?  It was that darn Bluetooth and WiFi setup for Snapbridge.  You see, once you turn it on, it stays on all the time, ostensibly to maintain a consistent contact with your smartphone to suck GPS info from it in real time and of course allow transfer of images for immediate uploading, albeit in my case, no transfer at all.  I turned the Bluetooth and WiFi off and was able to make about 300 images without any more movement on the battery gauge.  I won't kid you that they were killer images.  Many were playing around in continuous focus in high speed burst chasing a willing bird.  Nothing to write home about from an image perspective but a strong indicator that the camera holds up under constant use.

I only used a Lexar XQD card in my testing, I confess that I never even considered using an SD card because the performance of XQD is just so superior.

For many of the first "roll" I used the supplied 16-80 DX Nikkor lens.  Something just didn't feel right and when I looked at the uncorrected images in Lightroom, I could see beaucoup barrel distortion at 16mm along with some fairly aggressive vignetting.  The lens is better at the 80mm end and is decently sharp but at a unit cost of over $1200 here in Canada, it should be delivering much better image quality.  It does have Nikon's NANO coating for durability and has a decent rectangular shaped lens hood included, but I'm not inclined to recommend it.  I'd be much more inclined to go with FX glass on this high end body and get the superior IQ, even if it meant having to carry multiple lenses for wide shots.  Many folks will only have one camera body, so this means doing some research before choosing.  A later update of Lightroom improved the overall image correction of the D500 with the 16-80 to match Capture One 10.

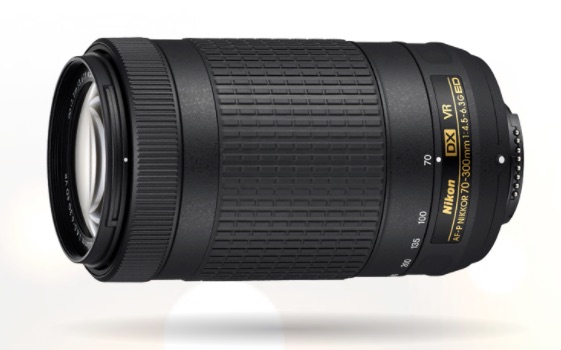

I also shot the supplied AF-P DX Nikkor 70-300 G-ED VR which is an f/4.5-6.3 lens.  This lens is designed as a complement to an 18-55 kit lens and delivers quite decent performance.  The P series use pulse (stepping) motors for near silent autofocus.  Sharpness was good, distortions were minimal and vignetting wasn't a big issue.  The non-VR lens lists for $449.99 and is certainly not what I would choose to go with a D500, but maybe might be a good choice as a companion lens with a D3400.  When Nikon announced the P series of lenses, they built versions with and without VR.  The VR capable version of this lens lists at $529.99 and in my opinion, regardless of your use cases, if this focal length range works for you, spend the $75 and get VR.  I honestly cannot figure out why Nikon would go to the trouble to even make non-VR telephoto lenses in this day and age other than to hit a price point.  At 450mm effective focal length on a crop sensor, EVERYBODY benefits from VR.  Nice enough glass to be sure, but I do not recommend the non-VR version for anyone.  That said, the one I got was the VR version, but oddly there is no on/off switch for Vibration Reduction.  It's on.  All the time.  In one mode.  Weird, and not what I would expect from Nikon.  Feels cheapo.  The lens mount is made of plastic.  Nikon is not the only manufacturer to use plastic in their low end lens mounts.  I have seen so many Nikon low end lenses with the mount ears cracked or snapped off, I personally would advise a buyer to never buy any lens from anyone with a plastic mount.

The Second "Roll"

For my second big shoot, I decided to put the 70-300 to the test of a hockey game in a poorly lit arena.  I set the camera to Av, and the widest aperture and also chose Auto ISO with a target of ISO 400 and a ceiling of 25,600.  I also set the minimum shutter speed to AUTO in the Auto ISO settings to see what the camera would do with a slow lens in really crappy light.

The first thing that I noticed was that the diopter setting had moved, even though the knob had not been extended.  I like that Nikon features a locking diopter knob so this struck me as odd.  After my first roll experience with the flat and ugly Neutral Picture Style, I set this roll to use Standard.  As I was shooting RAW, it really makes no difference but the images on the LCD were much less nausea inducing.

As I was shooting hockey, I set the exposure compensation initially to +1, but in short order still felt the images were too dark and moved the compensation to +1 1/3.  This gave me a better histogram without any clipping.  I had turned the LCD brightness down on the first roll and while initially I thought that the LCD images were too dark, on quick inspection, I found that they were actually quite decent, although I should have gone +2 on the exposure compensation I think.

I shot in AF-C with a balanced release protocol.  I made a couple of mistakes in my settings however.  I should have been more explicit about the minimum shutter speed as when I was racked out to 300mm, the Auto ISO allowed the shutter speed to dip to the point where I was getting motion blur.  It followed its program, the fault here was mine.  I also used the 3D tracking mode of autofocus rather than my usual tight group option.  I am very used to the Canon CASE system and hoped that 3D tracking would handle the kind of quick action and subjects crossing each other that is normal in hockey.  Sometimes it worked, other times the focus point was dancing all over the display often onto the ice where there were no players.  It worked ok, but I wouldn't use it in a client situation without a lot more practice and confidence.

Instead of using Lightroom first for this roll, I decided to give the RAW converter from CaptureONE 10 a shot.  I have found in the past that I prefer the CaptureONE conversion to the Adobe conversion on some Nikon cameras, and definitely on Sony cameras.  Folks bitch and kvetch about how slow the import on Lightroom is.  I have to be fair to PhaseONE as I bought the upgrade to CaptureONE 10 on the first day it released, but let me say that the import of 516 images would in no way make anyone think of fast to describe it.  Once the import was done, performance changes and I will say that I was very impressed with the speed from then on.  I liked the look of the RAW conversion and am thrilled with the noise control in the D500.  It's really very very good despite having been given a lot of latitude in the poor light in the arena.  One might guess that 20MP on a crop sensor would not deliver really awesome high ISO results.  Compared to Canon's 7D Mark II, the D500 is much better.  I own the 7D2 and admit I have never felt it lived up to the marketing.  The D500 is what the 7D2 should have been.

To be fair, I also imported the same RAW images into Lightroom.  The latest version is quicker than in the past, and despite my being less expert with CaptureONE 10, I still found the Lightroom Import process slower.  I was importing from a NAS volume in both cases, so I think that the import comparison is fair.

The ISO Test

As I typically do, I asked my friendly model Sondra if she would mind being part of the ISO test.  Like the great magician Teller, she is quite silent, but unlike Teller she has only one facial expression.  I placed her beside a large Datacolor Spyder Checker and oriented it so you could see the photo swatches cleanly to the detriment of the warmth and coolness swatches.  The D500 was mounted to a tripod, used the 16-80 lens and the scene was lit with a Profoto D2 strobe firing into a Broncolor Para 170FB.  I had to use very small f/stops to get the full ISO range as that Profoto is still pretty powerful even at it's lowest setting.  This may account for some diffraction impact on focus.  The images were shot in RAW, imported to Lightroom where only the base RAW import sharpening and lens corrections were applied.  For the ISO 25600 image, exposure was reduced in post .33EV to address minor overexposure due to hitting the low limit on the D2, and the ISO 51200 image was reduced 1EV for the same reason.  Since both images were barely and moderately exposed to the right, by reducing exposure, noise is not added and in fact the images may be better than if the exposure had been perfect straight out of camera.

Camera settings were Manual, 1/200, f/18 until I needed to make the aperture smaller to get the high ISOs to work (EXIF is included in the images)  White Balance was set to Flash, AF was set to single point with it dropped on the lower lash of Sondra's left eye.  Images in the Gallery were exported from Lightroom as JPEGs with 1440px on the long side and 100% quality.

The D500 is excellent at noise management at high ISO, certainly the best performance I have ever seen from a crop sensor camera.  It still doesn't compete with the Nikon D5 or the Canon 1Dx I or II, but let's remember that this is a crop factor of 1.5 on a 20MP sensor.  I would be quite comfortable shooting this camera at 12800 with good exposures.  The 25600 option does start to show the noise, along with increased contrast and a minor colour shift.  The top numeric end of 51200 is only for the most must have, image quality doesn't matter use.  I did try the Hi settings as well, and much like those on the D5, they make for nice marketing, but not nice images.  That said, a crop sensor that is this good at ISO 12800 is an incredible achievement, considering the excellent dynamic range that the camera delivers as well.

I cannot help but believe that the overall image quality would have been better had I been using an FX lens like the 24-70 or 24-120 instead of the 16-80.  Since I used the default Lightroom Lens Profile corrections you do not see the significant distortion in the ISO test images.

Video

The truth is out there.  All OEMs put video into their DSLRs, but based on customer feedback, next to no one uses it.  I would personally prefer that the OEMs put more into making the stills capability richer than putting time and money into functionality that over 95% of buyers never use.  It's not that the video quality is bad, it's that you need to spend a fortune to kit a camera up to be usable.  Candidly you will spend more on rigs and viewfinders and monitors and audio decks than you would on a dedicated 4K camcorder.  While that camcorder will have a smaller sensor, it will also offer faster focus, a wider zoom range and the ability to work without loading the thing with twenty pounds of weight.

Here's a 10 second or so clip shot in 4K.  As I couldn't see a darn thing on the LCD, I just let the camera do its thing.  I did not kit the camera out at all, preferring to test the same way that the average buyer would.  Because of all the snow, the video was underexposed so I used the Lumetri correction in Premiere Pro to fix the exposure, highlights and shadows and to set the HDR capability on for REC2020. Had I not done so, the clip was a black and white blob.  The camera was on a neck strap pushed forward by my arms for a bit of stability.  It's certainly viewable, with decent detail and contrast.

The 4K video is good.  The significant cropping that occurs negates any value proposition of wide angle glass.  You cannot see anything on the LCD in LiveView shooting outside, and Nikon does not have Canon's excellent dual pixel AF, so AF when it works is slow and hunts a lot.  Planted on sticks in a studio, you could do excellent interviews or videos for the web, so long as you add the proper accessories for audio and the like.  I do a lot of video, and cannot really say buy a D500 because of the great video.  Buy a D500 because it is an incredible stills camera.  It comes with video, but you probably won't ever use it.

Other Observations

We finally got some snow so I took the wolf to the offleash park to let him burn off some enthusiasm by sprinting back and forth.  He's quite fast so I shot images of him coming straight at me using the 70-300 on the D500 and on a Nikon Df.  Both were great in AF-C, but again I was disappointed with the 3D tracking on the D500.  I also had more focus misses on the D500 which I found surprising, considering that both cameras were working in DX mode.

 More Snow, More Fun

More Snow, More Fun

Conclusions

The Nikon D500 is by far the best crop sensor DSLR I have shot to date.  The camera fits my hands well, it is extremely fast, and compared to a D610 ripping along beside me at a hockey game, still very quiet even in Continuous High.  While the Nikon menu layout continues to leave room for improvement, getting on the shot is quick and precise.  This is the camera that Canon's 7D Mark II should have been.  I would recommend the use of Nikon's top of line FX glass with the D500 because the sensor deserves the best glass you can put on it.  I would love to attache the killer Nikon 24/1.4 for street shooting.  When hung with a subtle strap, the D500 is not so bulky and ostentatious to alert everyone around that you are making images.

If I love the camera so much, why not 5 Stars?  First is the choice of the kit lens in the bundle.  I know that the Nikon engineers are capable of much better glass and as this camera is so great it is hampered by this lens.  Of course if you buy it body only and then add a Nikon FX lens that issue vanishes.  The other reason is my utter despair at the foray into the abomination called Snapbridge.  I fear for Nikon's reputation as users try to use this defective in design, concept and execution train wreck.  Thank goodness that the typical buyer of a D500 is unlikely to want to punch unprocessed images to their smartphone in low quality for uploading to social media.  Those buyers are far more likely to want to work on their images and upload them to a more useful and higher quality gallery site.  I'm not alone here.  Every single person that I have spoken with who has tried Snapbridge has been more than willing to share their vituperation and hatred.  I've even found hacks to use the old WMU app with the D500 to avoid Snapbridge completely.  Nikon makes great cameras, please for the love of your reputation and long term success, stop with the crappy software experiments.  Of course, no D500 buyer is forced to use Snapbridge.  Were I to add a D500 to my kit, I would never even turn it on.  As noted earlier, once on, it's on and eats battery like a freaking Pacman on meth.  The emphasis on Snapbridge as a viable tool cost the D500 the fifth star.

Would I buy a D500?  If I were shooting Nikons professionally at this time, absolutely.  I have in the past, and probably will again at some point.  Even though I no longer have any Nikon glass, I am thinking of a D500 with a 24/1.4 with some serious consideration.  It is absolutely the best crop sensor DSLR that I have ever shot when it comes to capability and image quality.  Yup, that's my opinion, and you are welcome to disagree.  I loved it.





Specifications (courtesy Nikon Canada)

    1. Type
      Single-lens reflex digital camera

    2. Lens Mount
      Nikon F bayonet mount
    1. Picture Angle
      Nikon DX format
    2. Effective Pixels (Megapixels)
      20.9  million
    3. Sensor Size
      23.5 mm

       x  15.7 mm
    4. Image Sensor Format
      DX
    5. Image Sensor Type
      CMOS
    6. Total Pixels
      21.56  million
    7. Dust-reduction system
      Image sensor cleaning
      Image Dust Off reference data (optional Capture NX-D software required)
    8. Dust-Off Reference Photo
      Yes
    9. Image Area (pixels)
      DX-format
      (L)  5,568 x 3,712
      (M)  4,176 x 2,784
      (S)  2,784 x 1,856
      1.3x Crop Mode
      (L)  4,272 x 2,848
      (M)  3,200 x 2,136
      (S)  2,128 x 1,424
      Photographs taken during movie recording at a frame size of 3,840 x 2,160:  3,840 x 2,160
      Photographs with image area of DX taken during movie recording:
      (L) 5,568 x 3,128
      (M) 4,176 x 2,344
      (S) 2,784 x 1,560
      Photographs with image area of 1.3x taken during movie recording:
      (L) 4,272 x 2,400
      (M) 3,200 x 1,800
      (S) 2,128 x 1,192
    1. File Format Still Images
      JPEG: JPEG-Baseline compliant with fine (approx 1:4), normal (approx 1:8), or basic (approx 1:16) compression
      NEF (RAW) + JPEG: Single photograph recorded in both NEF (RAW) and JPEG formats
      NEF (RAW): 12 or 14 bit, lossless compressed, compressed, or uncompressed; large, medium, and small available (medium and small images are recorded at a bit depth of 12 bits using lossless compression)
      TIFF (RGB)
    2. Storage Media
      SD
      SDHC
      SDXC
      XQD Type Memory
    3. Card Slot
      Either card can be used for primary or backup storage or for separate storage of NEF (RAW) and JPEG images; pictures can be copied between cards.
    4. File System
      Compliant with  DCF (Design Rule for Camera File System) 2.0
      EXIF 2.3 (Exchangeable Image File Format for Digital Still Cameras
      PictBridge
    1. Viewfinder
      Eye-level pentaprism single-lens reflex viewfinder
    2. Viewfinder Frame Coverage
      DX (24x16):  100% Horizontal and 100% Vertical  Approx.
      1.3x (18x12):  98% Horizontal and 98% Vertical  Approx.
    3. Viewfinder Magnification
      1.0x (50 mm f/1.4 lens at infinity, –1.0 m–1)  Approx.
    4. Viewfinder Eyepoint
      16mm (-1.0 m¯¹)
    5. Viewfinder Diopter Adjustment
      -2.0 to +1.0m¯¹
    6. Focusing Screen
      Type B BriteView Clear Matte Mark II with AF area brackets (grid lines can be displayed)
    7. Reflex Mirror
      Quick-return type
    8. Mirror Lock Up
      Yes
    1. Lens Aperture
      Instant-return type
      electronically controlled
    2. Depth-of-field Control
      Pressing Pv button stops lens aperture down to value selected by user (A and M modes) or by camera (other modes)
    3. Lens Compatibility at a Glance***
      AF-S or AF lenses fully compatible
      Metering with AI lenses (exposure modes A and M only)
    4. Compatible Lenses
      AF NIKKOR lenses, including type G, E, and D lenses (some restrictions apply to PC lenses) and DX lenses, AI-P NIKKOR lenses, and non-CPU AI lenses (exposure modes A and M only).
      Electronic rangefinder can be used with lenses that have a maximum aperture of f/5.6 or faster (the electronic rangefinder supports 15 focus points with lenses that have a maximum aperture of f/8 or faster, of which 9 points are available for selection).
      IX NIKKOR lenses, lenses for the F3AF, and non-AI lenses cannot be used.
    1. Shutter Type
      Electronically controlled vertical-travel focal-plane mechanical shutter
      Electronic front-curtain shutter available in mirror up release mode
    2. Shutter Speed
      1/8000 to 30 sec. in steps of 1/3, 1/2, or 1 EV, Bulb, Time, X250
    3. Fastest Shutter Speed
      1/8000  sec.
    4. Slowest Shutter Speed
      30  sec.
    5. Flash Sync Speed
      Up to  1/250 sec.
      Synchronizes with shutter at 1/250s or slower
    6. Bulb Shutter Setting
      Yes
    7. Shutter Release Modes
      Continuous low-speed [CL] mode
      Continuous high-speed [CH] mode
      Mirror-up [Mup] mode
      Quiet Shutter Release
      Quiet Continuous Release
      Self-timer mode
      Single-frame [S] mode
    8. Frame Advance Rate
      Up to 10 fps (manual focus, mode M or S, shutter speed 1/250 sec or faster, and other settings at default values)
    9. Continuous Shooting Options
      DX-format
      CH: Up to  10  frames per second
      CL: Up to  1-9  frames per second

      Quiet Continuous Mode: Up to  3  frames per second
    10. Top Continuous Shooting Speed at full resolution
      10  frames per second
    11. Self-timer
      2, 5, 10, 20 sec.; 1 to 9 exposures at intervals of 0.5, 1, 2, or 3 sec.
      Timer duration electronically controlled
    1. Exposure Metering System
      TTL exposure metering using approximately 180K (180,000) pixels RGB sensor
    2. Metering Method
      Center-weighted: Weight of 75% given to 8 mm circle in center of frame. Diameter of circle can be changed to 6, 10, or 13 mm, or weighting can be based on average of entire frame (non-CPU lenses use 8-mm circle)
      Matrix: 3D Colour Matrix Metering III (type G, E, and D lenses); Colour Matrix Metering III (other CPU lenses); Colour Matrix Metering available with non-CPU lenses if user provides lens data
      Spot: Meters 3.5mm circle (about 2.5% of frame) centered on selected focus point
      Highlight-weighted: Available with type G, E, and D lenses; equivalent to center-weighted when non-CPU lens is used
    3. Metering Range
      -3 ± 20 EV (Matrix or center-weighted metering)
      0 to 20 EV (Highlight-weighted metering)
    4. Exposure Meter Coupling
      CPU
      AI
    5. Exposure Modes
      Aperture-Priority (A)
      Manual (M)
      Programmed auto with flexible program (P)
      Shutter-Priority (S)
    6. Exposure Compensation
      ±5 EV in increments of 1/3, 1/2 or 1 EV
    7. Exposure Bracketing
      2 to 5 frames in steps of 2 or 3 EV
      2 to 9 frames in steps of 1/3, 1/2, 2/3 or 1 EV
    8. Exposure Lock
      Luminosity locked at detected value with AE-L/AF-L button
    9. Picture Control
      Flat
      Landscape
      Monochrome
      Neutral
      Portrait
      Standard
      User-customizable Settings
      Vivid
    1. ISO Sensitivity
      ISO  100  -

      51,200
      Can also be set to approx. 0.3, 0.5, 0.7, or 1 EV (ISO 50 equivalent) below ISO 100 or to approx. 0.3, 0.5, 0.7, 1, 2, 3, 4, or 5 EV (ISO 1,640,000 equivalent) above ISO 51,200; auto ISO sensitivity control available
    2. Lowest Standard ISO Sensitivity
      100
    3. Highest Standard ISO Sensitivity
      51,200
    4. Lowest Expanded ISO Sensitivity
      Lo-1 (ISO 50 equivalent)
    5. Highest Expanded ISO Sensitivity
      Hi-5 (ISO 1,640,000 equivalent)
    6. Expanded ISO Sensitivity Options
      Lo-1 (ISO 50 equivalent)
      Hi-1 (ISO 102,400 equivalent)
      Hi-2 (ISO 204,800 equivalent)
      Hi-3 (ISO 409,600 equivalent)
      Hi-4 (ISO 892,200 equivalent)
      Hi-5 (ISO 1,640,000 equivalent)
    7. Long Exposure Noise Reduction
      Yes
    8. High ISO Noise Reduction
      Low
      Normal
      High
      Off
    9. Active D-Lighting
      Auto
      Extra High
      Normal
      Low
      Off
    10. D-Lighting Bracketing
      2 frames using selected value for one frame
      3–5 frames using preset values for all frames
    1. Single-point AF Mode
      Yes
    2. Dynamic AF Mode
      Number of AF points: 25, 72 and 153 (3D-tracking)
    3. Auto-area AF Mode
      Yes
    4. Autofocus System
      Nikon Advanced Multi-CAM 20K autofocus sensor module with TTL phase detection and fine-tuning, and 153 focus points (including 99 cross-type sensors and 15 sensors that support f/8), of which 55 (35 cross-type sensors and 9 f/8 sensors) are available for selection
    5. Detection Range
      -4 to +20 EV (ISO 100, 68°F/20°C)
    6. Lens Servo
      Autofocus (AF): Single-servo AF (AF-S); continuous-servo AF (AF-C); predictive focus tracking activated automatically according to subject status
      Manual focus (MF): Electronic rangefinder can be used
    7. AF-area Mode
      25, 72, or 153 point Dynamic-area AF
      Auto-area AF
      Single-point AF
      3D-tracking
      Group-area AF
    8. Focus Lock
      Focus can be locked by pressing shutter-release button halfway (single-servo AF) or by pressing the centre of the sub-selector
    9. Focus Modes
      Continuous-servo (AF-C)
      Face-Priority AF available in Live View only and D-Movie only
      Full-time Servo (AF-F) available in Live View only
      Manual (M) with electronic rangefinder
      Normal area
      Single-servo AF (AF-S)
      Wide area
    10. Maximum Autofocus Areas/Points
      153
    11. Autofocus Sensitivity
      -4 to +20 EV (ISO 100, 20°C/68°F)
    12. Autofocus Fine Tune
      Yes
    1. Flash Bracketing
      2 to 5 frames in steps of 2 or 3 EV
      2 to 9 frames in steps of 1/3, 1/2, 2/3 or 1 EV
    2. X-Sync Speed
      1/250
    3. Top FP High Speed Sync
      Up to  1/8000
    4. Flash Control
      TTL: i-TTL flash control using RGB sensor with approximately 180K (180,000) pixels; i-TTL balanced fill-flash for digital SLR is used with matrix, center- weighted, and highlight-weighted metering, standard i-TTL fill-flash for digital SLR with spot metering
    5. Flash Sync Modes
      Auto FP High-Speed Sync supported
      Front-curtain sync (normal)
      Rear-curtain sync
      Red-Eye reduction
      Red-Eye reduction with slow sync
      Slow rear-curtain sync
      Slow sync
    6. Flash Compensation
      -3 to +1 EV in increments of 1/3, 1/2 or 1 EV
    7. Flash-ready Indicator
      Lights when optional flash unit such as SB-5000, SB-910, SB-900, SB-700, SB-400, SB-300 or SB-R200 is fully charged
    8. Accessory Shoe
      Yes
    9. Nikon Creative Lighting System (CLS)
      CLS Supported
    10. Flash Sync Terminal
      Yes
    1. White Balance
      Auto (3 types)
      Choose colour temperature (2500K–10000K)
      Cloudy
      Direct Sunlight
      Flash
      Fluorescent (7 types)
      Incandescent
      Preset manual (up to 6 values can be stored, spot white balance measurement available during live view)
    2. White Balance Bracketing
      2 to 9 exposures in increments of 1, 2 or 3 EV
    1. Live View Shooting
      Photography Live View Mode
      Movie Live View Mode
    2. Live View Lens servo
      Autofocus (AF): Single-servo AF (AF-S); full-time-servo AF (AF-F)
      Manual focus (MF)
    3. Live View AF-area mode
      Face-priority AF
      Wide-area AF
      Normal-area AF
      Subject-tracking AF
    4. Live View Autofocus
      Contrast-detect AF anywhere in frame (camera selects focus point automatically when face-priority AF or subject-tracking AF is selected)
    1. Movie Metering
      TTL exposure metering using main image sensor
    2. Movie Maximum recording time
      4K UHD up to 29:59 min; 1,080 60/50/30/25/24p up to 29:59 min; 720 60/50p up to 29:59 minutes
    3. Movie File Format
      MOV
    4. Movie Video Compression
      H.264/MPEG-4 Advanced Video Coding
    5. Movie Audio recording format
      Linear PCM
    6. Movie
      4K UHD 3,840x2,160 / 30 fps
      4K UHD 3,840x2,160 / 25 fps
      4K UHD 3,840x2,160 / 24 fps
      Full HD 1,920x1,080 / 60 fps
      Full HD 1,920x1,080 / 50 fps
      Full HD 1,920x1,080 / 30 fps
      Full HD 1,920x1,080 / 25 fps
      Full HD 1,920x1,080 / 24 fps
      HD 1,280x720 / 60 fps
      HD 1,280x720 / 50 fps
      Actual frame rates for 60p, 50p, 30p, 25p, and 24p are 59.94, 50, 29.97, 25, and 23.976 fps respectively
      High quality available at all frame sizes, normal quality available at all sizes except 3,840 x 2,160
    7. Movie Audio
      Built-in microphone, stereo
      External stereo microphone (optional - sold separately)
      Microphone sensitivity can be adjusted
    1. Monitor Size
      3.2  in. diagonal
    2. Monitor Resolution
      2,359,000  Dots
    3. Monitor Type
      TFT touch-sensitive LCD with 170° viewing angle
    4. Monitor Angle of View
      170 -degree wide-viewing angle
    5. Monitor Adjustments
      Brightness,  5  levels
    6. Virtual Horizon Camera Indicator
      Yes
      Also visible in LiveView Modes
      Also visible in Viewfinder
    1. Playback Functions
      Auto Image Rotation
      Full-Frame and Thumbnail (4, 9, or 72 images or calendar)
      GPS data display
      Highlights
      Image Rating
      Image Rotation
      Image Slideshow
      IPTC information embedding and display
      Movie Playback
      Movie Slideshow
      Photo information
      Playback with Zoom
    2. In-Camera Image Editing
      Colour Balance
      D-Lighting
      Distortion Control
      Edit Movie
      Filter Effects
      Image Overlay
      Monochrome
      NEF (RAW) Processing
      Perspective Control
      Red-Eye Correction
      Resize
      Side-by-Side Comparison
      Straighten
      Trim
    3. Image Comment
      Yes
    1. Interface
      10-pin remote Terminal
      HDMI Output: Type C mini-pin HDMI connector
      Headphone Connector
      NTSC
      Stereo Microphone Input 3.5mm
      SuperSpeed USB (USB 3.0 Micro-B connector); connection to built-in USB port is recommended
    2. Wi-Fi Functionality
      Built-in Wi-Fi with NFC and Bluetooth
    3. Bluetooth
      Yes
    4. GPS
      GP-1A GPS unit (optional - sold separately)
    5. Save/Load Camera settings
      Yes
    1. Total Custom Settings
      52
    2. My Menu
      Yes with customization
    3. Recent Settings
      Yes
    4. Supported Languages
      Arabic
      Bengali
      Brazilian Portuguese
      Bulgarian
      Chinese (Simplified and Traditional)
      Czech
      Danish
      Dutch
      English
      Finnish
      French
      German
      Greek
      Hindi
      Hungarian
      Indonesian
      Italian
      Japanese
      Korean
      Marathi
      Norwegian
      Persian
      Polish
      Portuguese
      Romanian
      Russian
      Serbian
      Spanish
      Swedish
      Tamil
      Telugu
      Thai
      Turkish
      Ukrainian
      Vietnamese
    5. Date, Time and Daylight Savings Time Settings
      Yes
    6. World Time Setting
      Yes
    1. Battery / Batteries
      EN-EL15 Lithium-ion Battery
      Optional MB-D17 multi-power battery pack with one rechargeable Nikon EN-EL18a or EN-EL18 Li-ion battery (available separately), one rechargeable Nikon EN-EL15 Li-ion battery, or eight AA alkaline, Ni-MH, or lithium batteries. A BL-5 battery-chamber cover is required when using EN-EL18a or EN-EL18 batteries.
    2. Battery Life (shots per charge)
      1,240  shots (CIPA)
    3. AC Adapter
      EH-5b AC Adapter; requires EP-5B Power Connector (sold separately)
    4. Battery Charger
      MH-25a Quick Charger
    1. Tripod Socket
      0.64 cm
    2. Approx. Dimensions (Width x Height x Depth)
        147 mm x

        115 mm x

        81 mm
    3. Approx. Weight
      760 g
      camera body only
    4. Operating Environment
      0–40 °C
      Less than 85% (no condensation)
